• Vac Tweezer

    Technical details
    Application with pressure air
    Operating pressure 1,5-7 bar
    Supply pressure 5 bar
    Max. vacuum 90%
    Art. VTA-SET

    Air pressure operated – The VAC-Tweezer includes an integrated
    generator without the need for valves, for the drill.

    Art. VTB-SET

    Air pressure operated – The VAC-Tweezer includes an integrated
    silencer with a simple push button providing noiseless operations.

    Art. VTA-SET-V

    Vacuum operated– The VAC-Tweezer without a generator but with
    a drill.
    Included in the set:

    • VAC-Tweezer and spiral hose
    • 1 cup (Silicone) Ø 2, 4, 6, 8 mm
    • Adapter for cup, curved Ø 2 und 4 mm
    • Adapter for cup, curved Ø 6 und 8 mm
    Accessories and Spare Parts

    Description version Art.
    1 set replacement cups made of NBR* Ø 2 / 4 / 6 / 8 mm VT-NBR-Set
    1 set replacement cups made of Silicone* Ø 2 / 4 / 6 / 8 mm VT -Si-Set
    Air hose schwarz UL04-2B
    Adapter for cup, straight Ø 2 / 4 mm VPZ-2-S
    Adapter for cup, straight Ø 6 / 8 mm VPZ-6-S
    Adapter for cup, curved Ø 2 / 4 mm VPZ-2
    Adapter for cup, curved Ø 6 / 8 mm VPZ-6
    *01= NBR, 02=Silicone

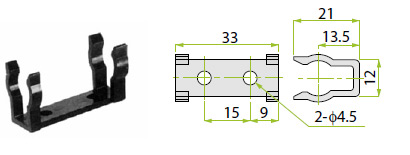

    Art. VUK 05

    Fitting for VAC-Tweezer (mm)
